Laboratory Mini Freeze Dryer Machine Use For Fruit And Vegetable Drying

  • Shipping Port:

    Xiamen
  • Model Number:

    FD-1A-50
  • Compliance:

    CE Certified
  • Minimum Order Quantity:

    1
  • Voltage:

    108V-240V 50/60HZ
  • Power:

    750 W
  • Warranty:

    1 year
  • Temperature range:

    -50 (optional -80) ℃
  • Dimension(L*W*H):

    460*556*(720+430)(mm)
  • Weight:

    75kg
  • Packaging Details:

    Export wooden package
  • Delivery Time:

    6-8 day
  • Product Details

Description for Lab Vacuum Freeze Dryer :

FD-1A-50 Freezing dryer is a new Freezing dryer device, suit for freeze-dring experiment in laboratory and a small amount production.

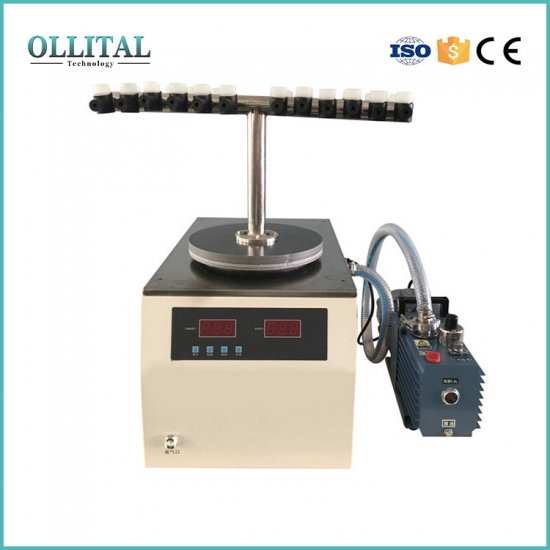

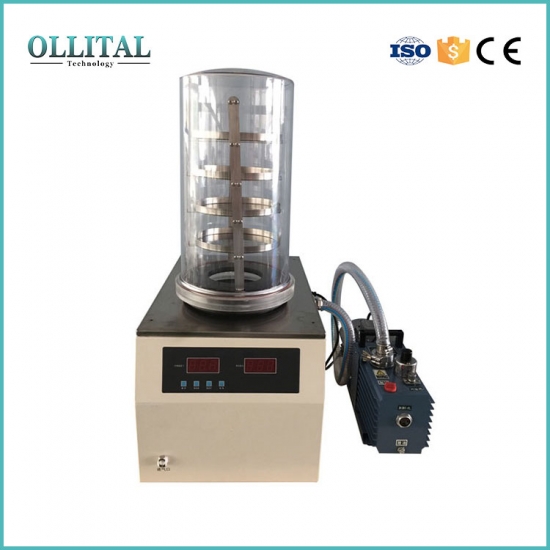

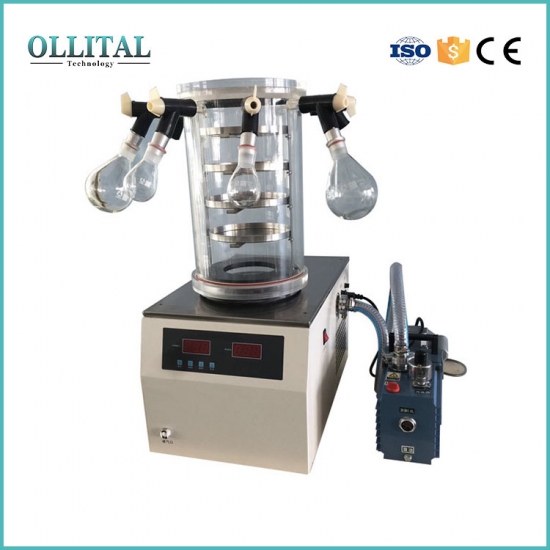

The series include: common type, capping type, branch manifold common type, branch manifold capping type.

Characteristics:
1. Green environment-friendly product to conform to international standard
2. LCD display, Chinese, and English interface, drying curve being displayed;
3. the mouth of cold trap is big, no internal coil, having the function of pre-cooling the samples
4. imported compressor with big capacity of refrigerating, and noise small;
5. Cold trap and Operation panel area all corrosion-resistant stainless steel, bright and
6. The organic glass cover can help you observe the whole freeze drying process.
7. stainless steel sample shelf, the space of common sample tray can be adjusted;
8. Electric defrost function

2 .jpg

Name and Model FD-1A-50 Vacuum Freeze Dryer
Freeze Drying Area 0.025 m2/layer
Cold trap temperature -50 (optional -80) ℃
Vacuum <10 Pa
Water-capture capacity 3~4 Kg/24h
Material tray diameter 180 mm
Tray number 3 layer
Whole power 750 W
Main frame size 460*556*(720+430)(mm)
Main frame weight 40 Kg
Liquid capacity 0.7 L (thickness:10mm)
Penicillin bottle  Penicillin bottle diameter12mm:560pcs
Penicillin bottle diameter 16mm:285pcS
Penicillin bottle diameter 22mm:165pcs

3 .jpg

1.Imported compressor, CFC Free refrigeration.
2.Big opening of cold trap, this type cold trap has pre-freeze function.
3.The machine can store freeze-dried data for many times, experimental data can be output by a USB flash disk.
4.Touch screen as human-computer interface, Chinese (English) convertible interface, display drying curve.
5.Small volume, compact structure ,easy and convenient operation.
6.The international standard KF vacuum interface, with a variety of vacuum pump combination.
7.Condenser and operation panel are all stainless steel, corrosion resistant and easy to clean.
8.Pre-freeze shelf can work as a lead tube, speed up the drying speed.
9.Optional charging valve, filling dry inert gas.
10.Cascade refrigeration is optional , applied for -80℃ machine.

13 jpeg.jpg

sealed ring
pre-freeze lid
Clamp
Vacuum tube with joint
Vacuum grease
vacuum pump
power cable
Organic glass over
Freeze drying shelf
Material trays
Pre-freezing shelf

4 .jpg1313131.jpg.jpg20.jpg21-Our-Certifications.jpg22.jpg23-.png24,.jpg25 .jpg
