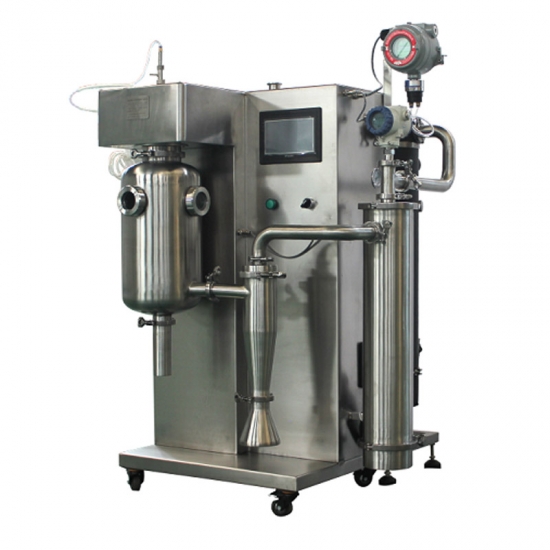

LCD Touch-screen Temperature Adjustable Closed Cycle Heat Spray Dryer

  • Lead Time:

    3-5
  • Model Number:

    OLT - BL-G1
  • Compliance:

    CE Certified
  • Minimum Order Quantity:

    1
  • Warranty:

    1 year
  • Product Details

Product Description

The device is specially aimed at organic solvents, and the inert gas medium formed by circulating nitrogen is used to replace the usual air medium for spray drying. In addition to recycling products, organic solvents can be recovered. In view of the characteristics of low flash point or micro toxicity of organic solvents, it is flammable and explosive. The closed cycle spray system is specially designed.

Parameter

Closed loop high temperature spray dryer OLT - BL-G1 OLT - BL-G3 OLT - BL-G5
NMP evaporation 0.8Kg/h 3Kg/h 5Kg/h
Minimum feed volume 50ml 80ml 100ml
Atomization structure Atomization system
Electronic control system Closed cycle atomization system
Maximum inlet temperature (centigrade) 100
The diameter of the drying chamber (mm) 300 800 800
Height of dry tower (mm) 600 1200 1500
Diameter of explosion-proof sheet (mm) 65 65 108
Heater capacity 4kw 8kw 18kw
Draft fan [power (kw), air volume (m /h)] [1.5,250] [2.2,300] [2.2,300]
Compressor [power (kw), air volume (L /min)] [0.58,108] [0.58,108] [0.58,108]
Water chilling unit 50-60Hz (built-in cryogenic cooling cycle pump)
Standard of main electrical accessories (including PLC, analog module, touch screen) (optional) Control module (standard), delta control module, SIEMENS control module, Germany.
On the other hand
Standard of electrical auxiliary accessories selection (including Contactors) (optional) CHINT (standard): Deli, Schneider.
Contact with the material (optional) SUS304   SUS316
Exhaust reutilization, energy saving over 30% (optional) Assembly (standard) / assembly
Atomizing nozzle (using diamond coating) (SUS304) (standard) SUS316 (standard) silicon carbide (standard) diamond
Equipment warranty 1 years (standard, above must be charged a certain maintenance cost) for 2 years, 3 years.
Electric power (installed capacity) 10kw 16kw 35kw
Pulse bag filter Polytetrafluoroethylene film mulching material
2 4 8
Shape size (mm) (L*W *H) Reference resources 1400*1000*1600  1800*1200*1800 2100*1200*1800
Installation weight (Reference) 500 pounds 450kg 1000kg
Power supply 380V/-3: it can be customized according to different national standards.
Remarks  280 NMP evaporation at inlet temperature of 0.

Main features

1,It can prevent oxidation, avoid danger and improve quality.
2,Easy to achieve aseptic dust free.
3,It can be used to recover the solvent in the liquid.
4,Improve the preservation of aromatic components.
5,It is capable of drying or cooling granulation of flammable liquid.
6,It can dry very high heat sensitive material.
7,It can achieve low public hazards and no public hazards.
8,It can save the deodorizer.
9,It can be dried at low temperature below 100 degrees C.

Product advantage

1,Non oxidizing ceramics, superhard alloys and high efficiency battery materials.

2,Seasoning, healthy food.

3,Medical products, vitamins, organic drugs.

4,Synthetic resin wax

Packing & Shipping


Send Us An Inquiry
We will contact you as soon as possible!
If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!

RELATED PRODUCTS

Ollital Technology  would like to establish win-win business cooperation with distributors all over the world.

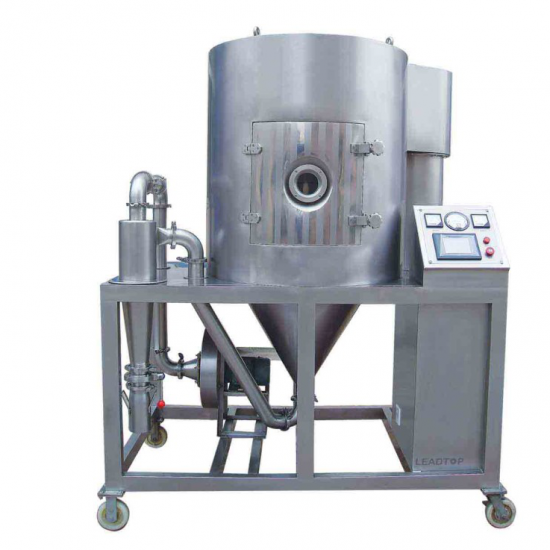

Mini Stainless Steel Laboratory Scale Spray Dryer

Laboratory Stainless Steel Spray Dryer Machine

Stainless steel spray dryer is designed to ensure that all functions are simple to select and adjust, to quickly achieve the optimum conditions for spray drying

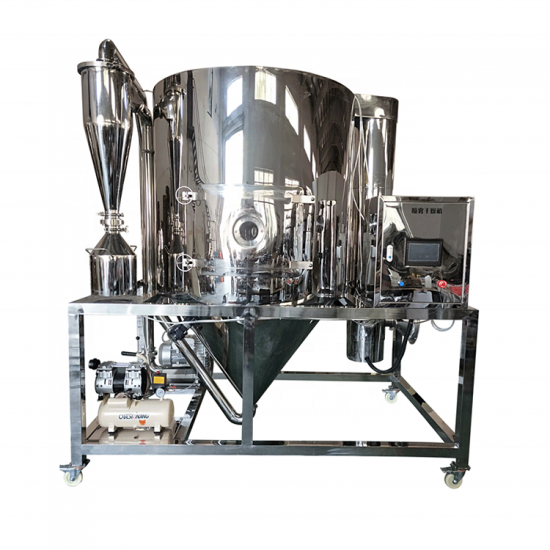

Small Scale Lab Spray Dryer Equipment

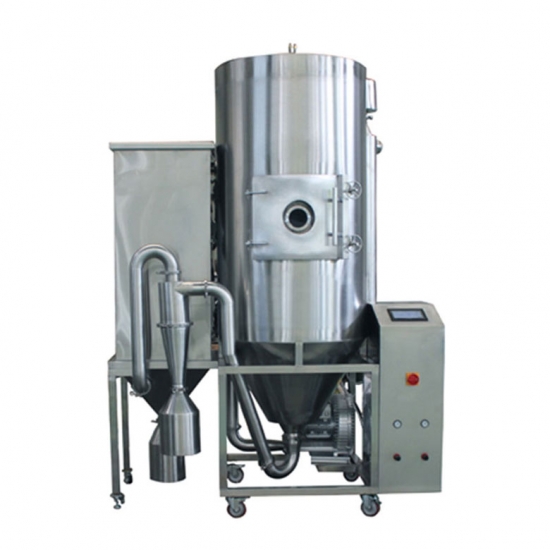

Lab Scale 1.5L Mini Spray Dryer Machine

High quality 1.5L scale lab spray dryer equipment

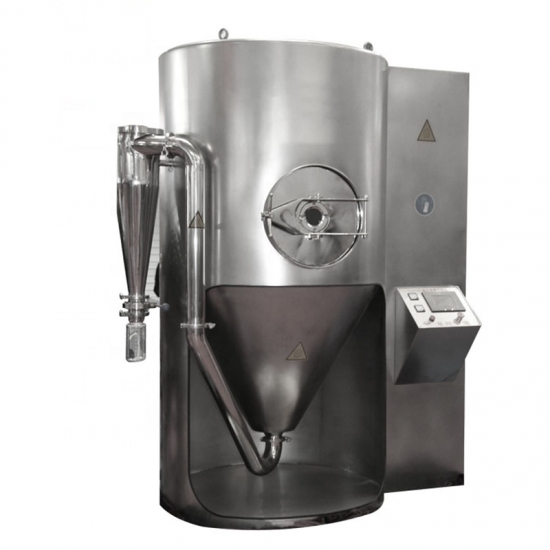

Small Scale Lab Spray Dryer Machine
