Lead Time:
1-3 daysModel Number:
OLT-SD8000BMinimum Order Quantity:
1Operation method:
PLCMixing method:
Touch ScreenCapacity:
2LWarranty:
1 yearSpray drying machine is especially suitable for drying the heat sensitive materials, after drying, there's no need for smashing and sorting, so as to reduce the operation procedures and save your time.
Parameter
Model
OLT-SD8000B
Max capacity
1500-2000ml/h
Temperature range of Inlet air
30C -280C
Temperature range of outlet air
40C -120C
Precision of temperature
± 1 C
Dryer time
1.0-1.5 S
Speed of squirmy pump
30-2000ml/h,
Consume of dryer air
0-330m3 /h, max pressure: 686Pa
Consume of spray air
0-4.2m3 /h, spray pressure: 2-5bar
Spray system
2 liquid nozzles with standard 0.7mm jet
options of 0.5/1.0/1.5/2.0/2.5mm
Spray direction
downwards co-current
Power
3.5KW 108V-240V
Dimensions
650*500*1550 ( mm ) L * W* H
Accessories
No
Name
Qty
1
Drying Chamber
1
2
Cyclone
1
3
Fan
1
4
Peristaltic pump
1
5
Air compressor
1
6
Collection bottle 500ml
1
7
Sample collection tube
1
8
Silicone tube 6mm
1.5m
9
Nozzle
1
10
Black Clamp
1
11
Nozzle cleaner
1
12
Power wire
1
Features
1. High efficient jet imported.
2. LCD touch screen displays temperature, airflow, air pressure, pump speed and jet cleaner frequency.
3. Auto controlling: one touch on/off, once processing parameters are set, peristaltic pump will be auto started; screen displays animation of the whole process of experiment.
4. Manual controlling is available, be able to adjust technical parameters during the process of experiment
5. With jet cleaner (stylet), its frequency can be automatically adjusted.
6. Power off thermal-protection, push off button and the equipment will stop at once, except draught fan, make sure equipment won't be burned out by incorrect operation (Forcibly shut fan).
7. Spray chamber, cyclone separator, and receiving tank are all made of transparent heat-resistant high-borosilicate glass; it creates a no-pollution environment for the drying process. All the spare parts are easy to install and wash.
8. Build in oil-free air compressor. The sound is low than 60db, and following the GMP standards.
9. Two-flow spray atomizing structure, whole machine is made of high quality stainless steel, compact design no accessory equipment is needed.
10. Use PID controller, the accuracy of heating temperature is around±1°C.
11. A filter has been equipped to the inlet unit to prevent the sample from contamination.
12. The self-priming peristaltic pump delivers the sample liquid from a container through a small diameter jet into the main chamber to avoid secondary pollution. To make sure the process conducted steady and smoothly.
13. Narrow size distribution, more than 95% of the dry powders are in the same range of particles.
14. Automatic jet cleaner (stylet) prevents the jet from becoming blocked and variably controlled.
15. Innovative tower wall purging device, improves the material recycling rate.
Beverages, Flavours and Colouring, Milk and Egg Products, Plant and Vegetable Extracts, Pharmaceuticals, Heat sensitive Materials, Plastics, Polymers and Resins, Perfumes, Ceramics and Advanced Materials, Soaps and Detergents, Blood, dyestuffs, Food Stuffs, Adhesives, Oxides, Textiles, Bones, Teeth and Tooth Amalgan and many others.
Packing and Shipping
-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent
Ollital Technology would like to establish win-win business cooperation with distributors all over the world.

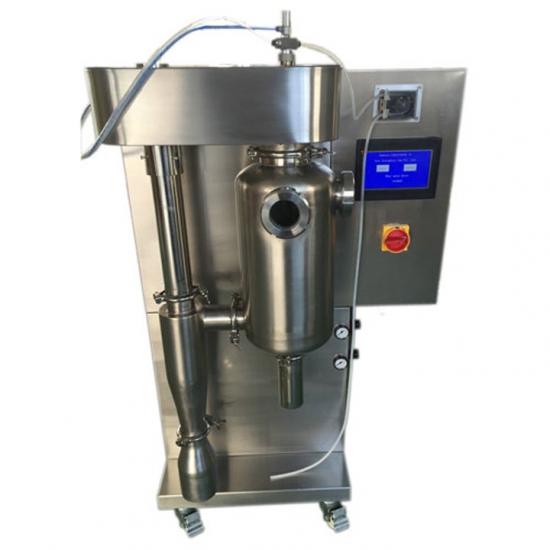

Stainless steel spray dryer is designed to ensure that all functions are simple to select and adjust, to quickly achieve the optimum conditions for spray drying
