Coffee Tea Flavored Meat Fat-rich Milk Powder Spray Dryer

  • Lead Time:

    1-3 days
  • Model Number:

    OLT-SD8000ST
  • Minimum Order Quantity:

    1
  • Operation method:

    PLC
  • Screen:

    Touch Screen
  • Capacity:

    2L
  • Warranty:

    1 year
  • Product Details

Spray drying machine is especially suitable for drying the heat sensitive materials, after drying, there's no need for smashing and sorting, so as to reduce the operation procedures and save your time.Replacer Amino Acid Animal Blood Meal Oat Chicken Juice Instant Coffee Tea Flavored Meat Fat-rich Milk Powder Spray Dryer

Parameter

Model OLT-SD8000ST
Max capacity  1500-2000ml/h
Temperature range of Inlet air  30℃ - 300℃
Temperature range of outlet air  30℃ -150℃
Precision of temperature  ± 1 ℃
Dryer time  1.0-1.5 S
Speed of squirmy pump  550-2000ml/h,
Consume of dryer air  0-330m3 /h, max pressure: 686Pa
Consume of spray air  0-4.2m3 /h, spray pressure: 2-5bar
Spray system 2 liquid nozzles with standard 1.0mm nozzle
Options of 0.5/0.7/1.5/2.0/2.5mm
Spray direction  Downwards co-current
Power  3.5KW   108V-240V
Dimensions

 650*500*1550 ( mm ) L * W* H

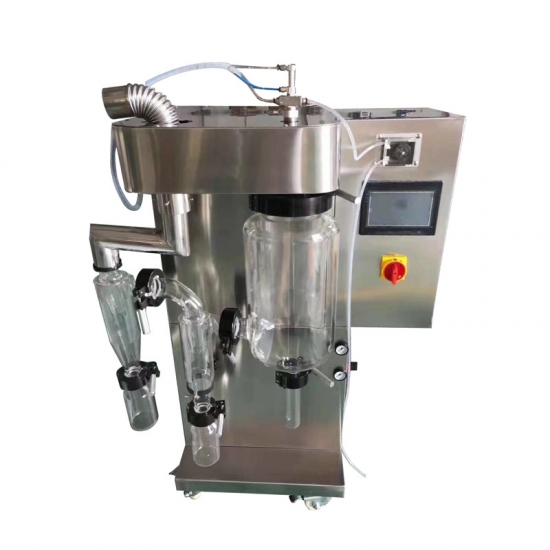

Small spray dryer configuration
1. Atomizer 9.Peristaltic pump
2. Large clamp 10. Drying room
3. Exhaust pipe 11. Touch screen
4, lock nut 12, 2# clamps
5. Cyclone separator 13. Power switch
6, 1# clamp 14.Feeding tube
7. Collection bottles 15.3# clamps
8. Large clamp 16.Collection tube
Accessories

Name Quantity
Glass drying room 1
Glass cyclone separator 2
Glass sample collection bottle 2
Glass sample waste bottle 1
Conveying silicone tube 6mm 2 meters
Spray cavity 1
Clamp (LY12 black) 6
Feature

1. High-tech nozzle,high efficiency.

2. LCD touch-screen display:inlet air temperature/outlet air temperature/pump speed/air volume/needle frequency.

3. Nozzle cleaner(needle)is set in the machine,and nozzle can be cleaned automaticaly by the needle when blocked.Needle frequency can be adjusted.

4. Shutdown protection function:the system will stop when pressing the stop botton,all parts except the fan will stop working.Heating system won’t be damaged in this way.

5. Material won’t get polluted due to the special material of the atomizing.

drying and collection system.

6. Two-fluid nozzle,stainless steel,compact stucture,no accessory device.

7. PID constant temperature control,precise temperature control,precision is ±1℃.

8. Feed rate can be adjusted by the peristaltic pump,Min. samples can reach 30ml.

9. Uniform product powder,above 95% powder keep within same size range.

Detail Images


Replacer Amino Acid Animal Blood Meal Oat Chicken Juice Instant Coffee Tea Flavored Meat Fat-rich Milk Powder Spray Dryer

Application

1. Chemical industry: hydrated silica, concrete additives, barium sulfate, basic chromic sulfate, alumina, titania, kaolin, ferrite, steatite, carbide, fertilizers, dyes, scouring agents, ACR assistants, latex, water purifiers, resins, plastics, cryolite.
2. Food Industry: dextrin, maltose, albumen powder, vitelline powder, compound sugar, granular grease, instant coffee, amylum, flavors, garden stuff. It is applied in drying of some kinds of liquid material, such as solutions, emulsions, suspensions, liquid pastes, etc.
3. Dairy: skim milk powder, whole milk powder, soy milk powder, ice cream powder, milk extract powder, etc.
4. Pharmaceutical industry: Chinese drugs and western medicine powder, antibiotics, biochemical products, vitamins, pesticides, hydrolyzed proteins, enzymes, single cell proteins, etc.
5. Building material industry: ceramic body, frit, superfine powder.
6. Environmental protection: flue gas desulfurization, disposal of black liquor and wastewater of pharmaceutical factories.

7. Others: fishmeal waste, feed, etc.Replacer Amino Acid Animal Blood Meal Oat Chicken Juice Instant Coffee Tea Flavored Meat Fat-rich Milk Powder Spray DryerReplacer Amino Acid Animal Blood Meal Oat Chicken Juice Instant Coffee Tea Flavored Meat Fat-rich Milk Powder Spray Dryer

Packing & Shipping


Replacer Amino Acid Animal Blood Meal Oat Chicken Juice Instant Coffee Tea Flavored Meat Fat-rich Milk Powder Spray DryerReplacer Amino Acid Animal Blood Meal Oat Chicken Juice Instant Coffee Tea Flavored Meat Fat-rich Milk Powder Spray Dryer
