Lead Time:
1-3 daysModel Number:
OLT-SD8000STMinimum Order Quantity:
1Operation method:
PLCMixing method:
Touch ScreenCapacity:
2LWarranty:
1 year
Spray drying machine is especially suitable for drying the heat sensitive materials, after drying, there's no need for smashing and sorting, so as to reduce the operation procedures and save your time.
Parameter
650*500*1550 ( mm ) L * W* H
Model
OLT-SD8000ST
Max capacity
1500-2000ml/h
Temperature range of Inlet air
30℃ - 300℃
Temperature range of outlet air
30℃ -150℃
Precision of temperature
± 1 ℃
Dryer time
1.0-1.5 S
Speed of squirmy pump
550-2000ml/h,
Consume of dryer air
0-330m3 /h, max pressure: 686Pa
Consume of spray air
0-4.2m3 /h, spray pressure: 2-5bar
Spray system
2 liquid nozzles with standard 1.0mm nozzle
Options of 0.5/0.7/1.5/2.0/2.5mm
Spray direction
Downwards co-current
Power
3.5KW 108V-240V
Dimensions
Accessories
Small spray dryer configuration
1. Atomizer
9.Peristaltic pump
2. Large clamp
10. Drying room
3. Exhaust pipe
11. Touch screen
4, lock nut
12, 2# clamps
5. Cyclone separator
13. Power switch
6, 1# clamp
14.Feeding tube
7. Collection bottles
15.3# clamps
8. Large clamp
16.Collection tube
| Name | Quantity |
| Glass drying room | 1 |
| Glass cyclone separator | 2 |
| Glass sample collection bottle | 2 |
| Glass sample waste bottle | 1 |
| Conveying silicone tube 6mm | 2 meters |
| Spray cavity | 1 |
| Clamp (LY12 black) | 6 |
1. High-tech nozzle,high efficiency.
2. LCD touch-screen display:inlet air temperature/outlet air temperature/pump speed/air volume/needle frequency.
3. Nozzle cleaner(needle)is set in the machine,and nozzle can be cleaned automaticaly by the needle when blocked.Needle frequency can be adjusted.
4. Shutdown protection function:the system will stop when pressing the stop botton,all parts except the fan will stop working.Heating system won’t be damaged in this way.
5. Material won’t get polluted due to the special material of the atomizing.
drying and collection system.
6. Two-fluid nozzle,stainless steel,compact stucture,no accessory device.
7. PID constant temperature control,precise temperature control,precision is ±1℃.
8. Feed rate can be adjusted by the peristaltic pump,Min. samples can reach 30ml.
9. Uniform product powder,above 95% powder keep within same size range.

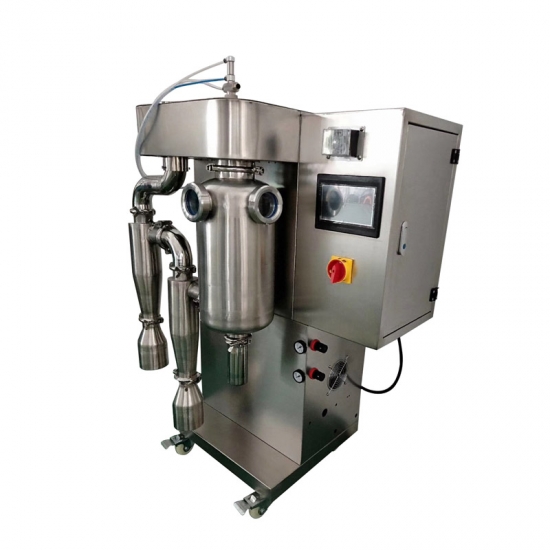

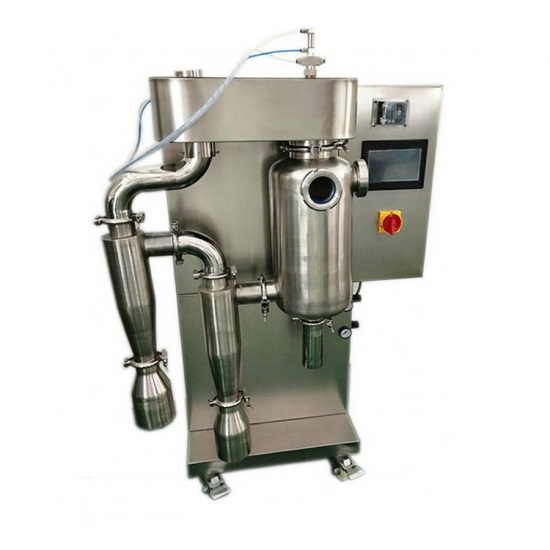

Detail Images
Application
1. Chemical industry: hydrated silica, concrete additives, barium sulfate, basic chromic sulfate, alumina, titania, kaolin, ferrite, steatite, carbide, fertilizers, dyes, scouring agents, ACR assistants, latex, water purifiers, resins, plastics, cryolite.
2. Food Industry: dextrin, maltose, albumen powder, vitelline powder, compound sugar, granular grease, instant coffee, amylum, flavors, garden stuff. It is applied in drying of some kinds of liquid material, such as solutions, emulsions, suspensions, liquid pastes, etc.
3. Dairy: skim milk powder, whole milk powder, soy milk powder, ice cream powder, milk extract powder, etc.
4. Pharmaceutical industry: Chinese drugs and western medicine powder, antibiotics, biochemical products, vitamins, pesticides, hydrolyzed proteins, enzymes, single cell proteins, etc.
5. Building material industry: ceramic body, frit, superfine powder.
6. Environmental protection: flue gas desulfurization, disposal of black liquor and wastewater of pharmaceutical factories.
7. Others: fishmeal waste, feed, etc.
Ollital Technology would like to establish win-win business cooperation with distributors all over the world.
