High quality 1.5L scale lab spray dryer equipment
Lab scale spray dryer is suitable for the production of in universities, research institutes and food and pharmaceutical chemical enterprises.
In many high-precision fields such as experiments, materials, pharmaceuticals, nanotechnology and environmental protection, ultrasonic technology prov
In high-standard experimental scenarios such as material research and development, electronic device testing, and automotive parts aging verification,
In laboratories, medical, pharmaceutical and food industries, every step of sterilization is related to quality and safety. As the core equipment for
In many professional fields such as material aging testing, photocatalytic experiments, and environmental weathering research, there are extremely hig
Lead Time:
1-3 daysModel Number:
OLT-SD10LMinimum Order Quantity:
1Operation method:
PLCMixing method:
Touch ScreenCapacity:
10LWarranty:
1 year
Centrifugal Powder Spray Dryer
Description
The spray dryer is mainly suitable for the production of micro particle powder in laboratories of universities, research institutes and food pharmaceutical and chemical enterprises, and is widely applicable to all solutions, such as emulsion and suspension.
It is suitable for drying of heat sensitive substances, such as biological products, biological pesticides, enzyme preparations, etc. Because the material is only sprayed into a fog when the high temperature and instantaneous heating, so these active materials still maintain its active.ingredients after drying.
Parameters
|
Name |
OLT-SD10L |
|
Inlet air temperature control |
≤30-300 °C. |
|
Outlet air temperature control |
<30 ~ 150 °C. |
|
Maximum evaporation of water |
200-10L/h. |
|
Centrifugal spray head transmission form |
Electric. |
|
Speed |
40,000 rpm |
|
Spray disc diameter |
80mm |
|
Heat source |
Electricity |
|
Electric heating maximum power |
18kw |
|
Total power |
22kw |
|
Dimensions L*W*H(mm) |
2500*1600*2800 |
|
Dry powder recovery |
≥98% |
| S.N. | Name | Specification | Material | Quantity |
| 1 | OLT-SD10L spray dryer | 2500*1600*2800 | Stainless steel | 1 |
| 2 | Tower body | Φ1400*2600 | Stainless steel | 1 |

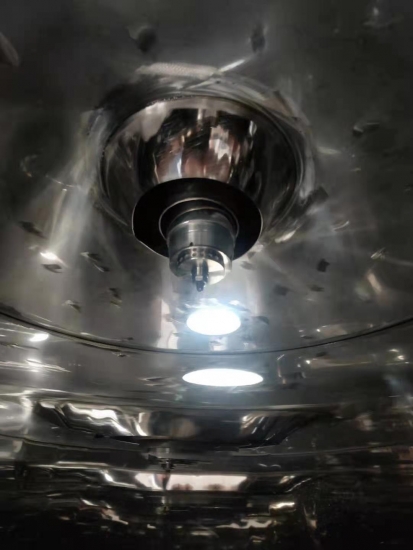

| 3 | Centrifugal nozzle atomizer | Φ80 10kg per hour | Stainless steel | 1 |

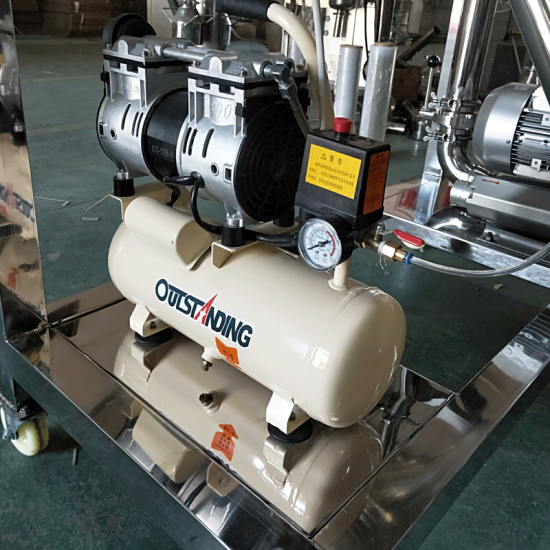

| 4 | Air compressor / vibrating air hammer | Matching | Stainless steel | 2 |
| 5 | Cyclone separator | Φ300 | Stainless steel | 1 |
| 6 | Peristaltic pump | 30-100L/h-0.55kw | Stainless steel | 1 |

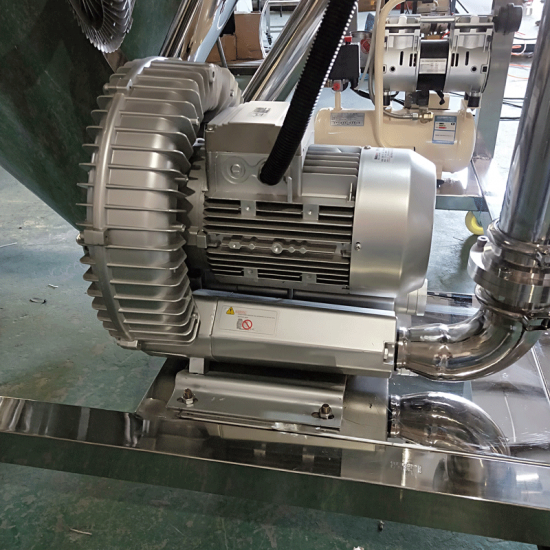

| 7 | Induced draft fan | 4kw | Q235A steel | 1 |
| 8 | Electric heaters | 18kw | Stainless steel | 1 |
| 9 | air filter | Matching | Sainless steel | 1 |

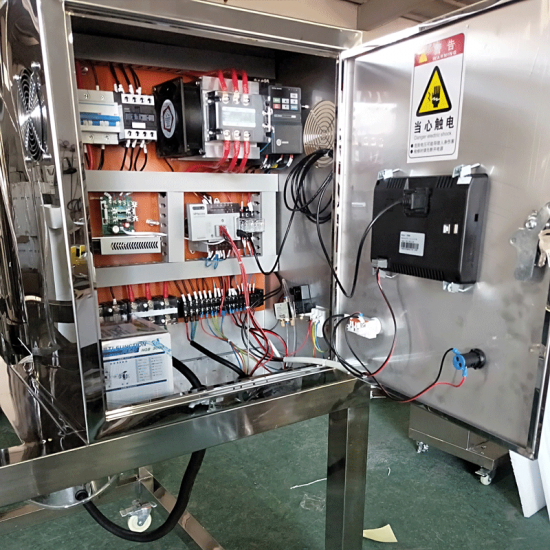

| 10 | Electrical control box | PLC | Stainless steel | 1 |
| 11 | Inlet and out wind temperature detector | Matching | Stainless steel | 2 |
| 12 | Air duct | Matching | Stainless steel | 1 |
| 13 | Receiving cylinder | 10L | stainless steel | 1 |
| 14 | Cylinder insulation | 50mm | Insulation cotton | |
| 15 | support | 60*60mm | Stainless steel | 1 |
Multiple Application Areas
The spray dryer is suitable for: Beverages, spices and colors, milk, egg products, plant and vegetable extracts, pharmaceutically synthesized thermosensitive plastics, polymers and resins, aromatics, blood products, ceramics and superconducting biochemical products, dye soaps and detergents, food, adhesives, oxides, bone meal and tooth powder, etc.
The equipment uses the principle of water evaporation to remove the solvent contained in the solution. In particular, it is suitable for the powder preparation industry of most heat sensitive materials. The equipment is equipped with a bag type dust collector, which is safe, environmental protection and reliable.
Details Image
Production Workshop
Ollital Technology would like to establish win-win business cooperation with distributors all over the world.
Stainless steel spray dryer is designed to ensure that all functions are simple to select and adjust, to quickly achieve the optimum conditions for spray drying
