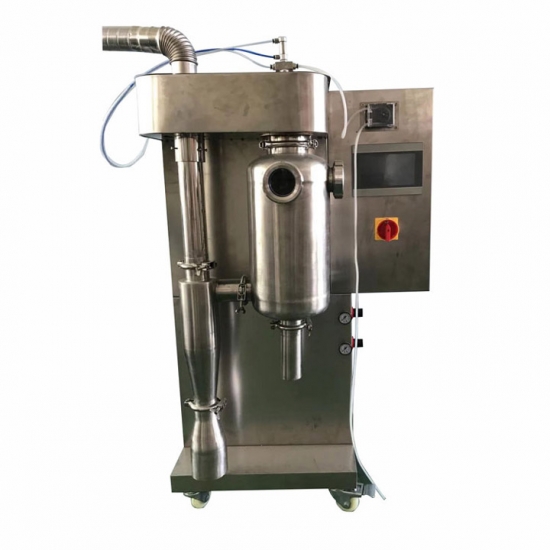

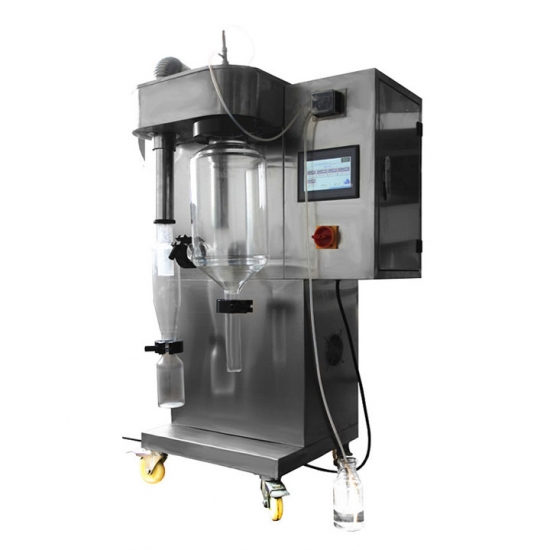

3L Lab Small Mini Vacuum Spray Dryer

  • Lead Time:

    1-3 days
  • Model Number:

    OLT-SD-3L
  • Minimum Order Quantity:

    1
  • Capacity:

    3L
  • Warranty:

    1 year
  • Product Details
Spray drying machine is especially suitable for drying the heat sensitive materials, after drying, there's no need for smashing and sorting, so as to reduce the operation procedures and save your time.
Product Paramenters
Model
OLT-SD-3L
Max capacity
1500-3000ml/h
Temperature range of Inlet air
30℃-300℃
Temperature range of outlet air
30℃ -140℃
Precision of temperature
± 1℃
Dryer time
1.0-1.5 S
Speed of squirmy pump
 30-3000ml/h
Consume of dryer air
0-330m3 /h, max pressure: 686Pa
Consume of spray air
0-4.2m3 /h, spray pressure: 2-5bar
Spray system
2 liquid nozzles with standard 0.7mm jet
options of 0.5/1.0/1.5/2.0/2.5mm

Spray direction
downwards co-current
Power
4.5KW 108V-240V
Dimensions
800*780*1450 ( mm ) L*W*H
Features
-The original nozzle (two-fluid nozzle) is highly efficient. (optional centrifugal nozzle)
-Color LCD touch screen parameter display: air inlet temperature / air outlet temperature / peristaltic pump speed / air volume /pin frequency.
-Full-automatic control: one-button start-up, after setting the spray process parameters, the temperature reaches the predetermined temperature, the peristaltic pump starts itself, the running animation is displayed on the touch screen, and the running process is clearly displayed; just press the stop button when shutting down, the machine automatically shuts down safely.
-Manual control: If the process parameters need to be adjusted during the experiment, it is convenient to switch to the manual state. The color touch screen is dynamically displayed during the whole experiment (animation)
-There is a nozzle cleaner (passing needle), which will automatically clear when the nozzle is blocked, and the frequency of the needle can be adjusted automatically.
-Shutdown protection function: Just press the stop button when shutting down, the machine will stop running immediately except the fan to ensure that the equipment will not burn out due to misoperation (forced off the fan).
-The entire system is made of stainless steel, allowing the drying process to be carried out in a non-polluting environment.
-Built-in imported oil-free air compressor, the diameter of the powder is normally distributed, the fluidity is very good, the noise is very low, less than 60db.
-The atomization structure of the two-fluid spray, the whole machine is made of high-quality stainless steel material, and the design is compact, no auxiliary equipment is needed.
-The design of drying temperature control adopts real-time regulation PID constant temperature control technology to make the temperature control in the full temperature zone accurate and the heating temperature control accuracy ±1 °C.
-In order to keep the sample clean, an air inlet filter is provided.
-The feed volume can be adjusted by the feed peristaltic pump with a minimum sample volume of 50ml.
-The dried powder after drying has a relatively uniform particle size, and more than 95% of the dry powder is in the same particle size range.
-For the sticky material, there is a nozzle cleaner (through needle), which will automatically clear when the nozzle is blocked, and the frequency of the needle can be adjusted automatically.
-Innovative tower wall purging device with higher material recovery rate.
Application
Beverages, Flavours and Colouring, Milk and Egg Products, Plant and Vegetable Extracts, Pharmaceuticals, Heat sensitive Materials,Plastics, Polymers and Resins, Perfumes, Ceramics and Advanced Materials, Soaps and Detergents, Blood, dyestuffs, Food Stuffs,Adhesives, Oxides, Textiles, Bones, Teeth and Tooth Amalgan and many others.

Packing & Shipping
