Lab 2L 5L 10L Lab Small Mini Food Egg Coconut Milk Pharmaceutical Ceramic Chemical Ceramic Nano Centrifugal Spray Dryer

Instantly dry the water-based material into a powder.
  • Lead Time:

    3-5 days
  • Product Orgin:

    china
  • Shipping Port:

    Xiamen
  • Model Number:

    OLT-SD8000B
  • Minimum Order Quantity:

    1
  • Capacity:

    1500ml-2000ml
  • Dimension(L*W*H):

    150*700*900mm
  • Weight:

    125
  • Product Details

Lab 2L 5L 10L Lab Small Mini Food Egg Coconut Milk Pharmaceutical Ceramic Chemical Ceramic Nano Centrifugal Spray Dryer

Description

This  Lab spray dryer has Stainless steel shell and arc corner design.Equip with imported Schneider electrical components,PLC control system,self-priming peristaltic pump and oil-free air compressor,is suitable for producing solid powder or particle products from liquid materials drying,such as  emulsion, suspending liquid, liquor and so on.

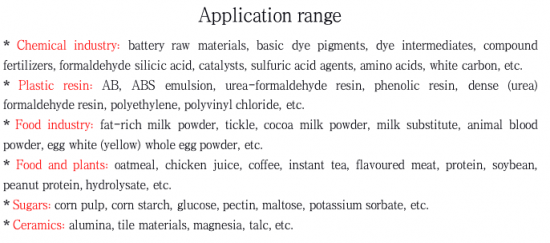

It is  widely used in drying Beverages, Flavours and Colouring, Milk and Egg Products, Plant and Vegetable Extracts, Pharmaceuticals, Heat sensitive Materials, Plastics, Polymers and Resins, Perfumes, Ceramics and Advanced Materials, Soaps and Detergents, Blood, dyestuffs, Food Stuffs, Adhesives, Oxides, Textiles, Bones, Teeth and Tooth Amalgan and many others.
Paramenters

Model
OLT-SD8000B
Max capacity
1500-2000ml/h
Temperature range of Inlet air
30C -280C
Temperature range of outlet air
40C -120C
Precision of temperature
± 1 C
Dryer time
1.0-1.5 S
Speed of squirmy pump
30-2000ml/h
Consume of dryer air
0-330m3 /h, max pressure: 686Pa
Consume of spray air
0-4.2m3 /h, spray pressure: 2-5bar
Spray system
2 liquid nozzles with standard 1.0mm jet
Options of 0.5/0.7/1.5/2.0/2.5mm
Spray direction
Downwards co-current
Power
3.5KW 108V-240V
Dimensions
650*500*1550 ( mm ) L * W* H
Main Features

1. High-tech nozzle,high efficiency.

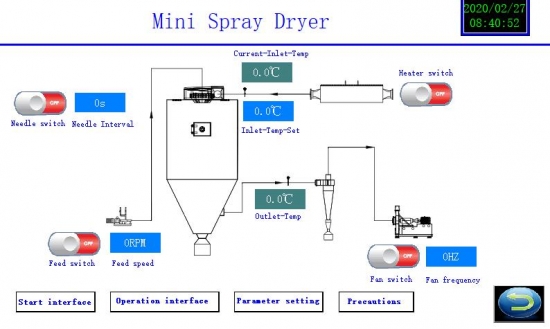

2. LCD touch-screen display:inlet air temperature/outlet air temperature/pump speed/air volume/needle frequency.
3. Nozzle cleaner(needle)is set in the machine,and nozzle can be cleaned automaticaly by the needle when blocked.Needle frequency can be adjusted.
4. Shutdown protection function:the system will stop when pressing the stop botton,all parts except the fan will stop working.Heating system won’t be damaged in this way.
5. Material won’t get polluted due to the special material of the atomizing.drying and collection system.
6. Two-fluid nozzle,stainless steel,compact stucture,no accessory device.
7. PID constant temperature control,precise temperature control,precision is ±1℃.
8. Feed rate can be adjusted by the peristaltic pump,Min. samples can reach 30ml.
9. Uniform product powder,above 95% powder keep within same size range.
Equipment parts introduction:


Detailed Images

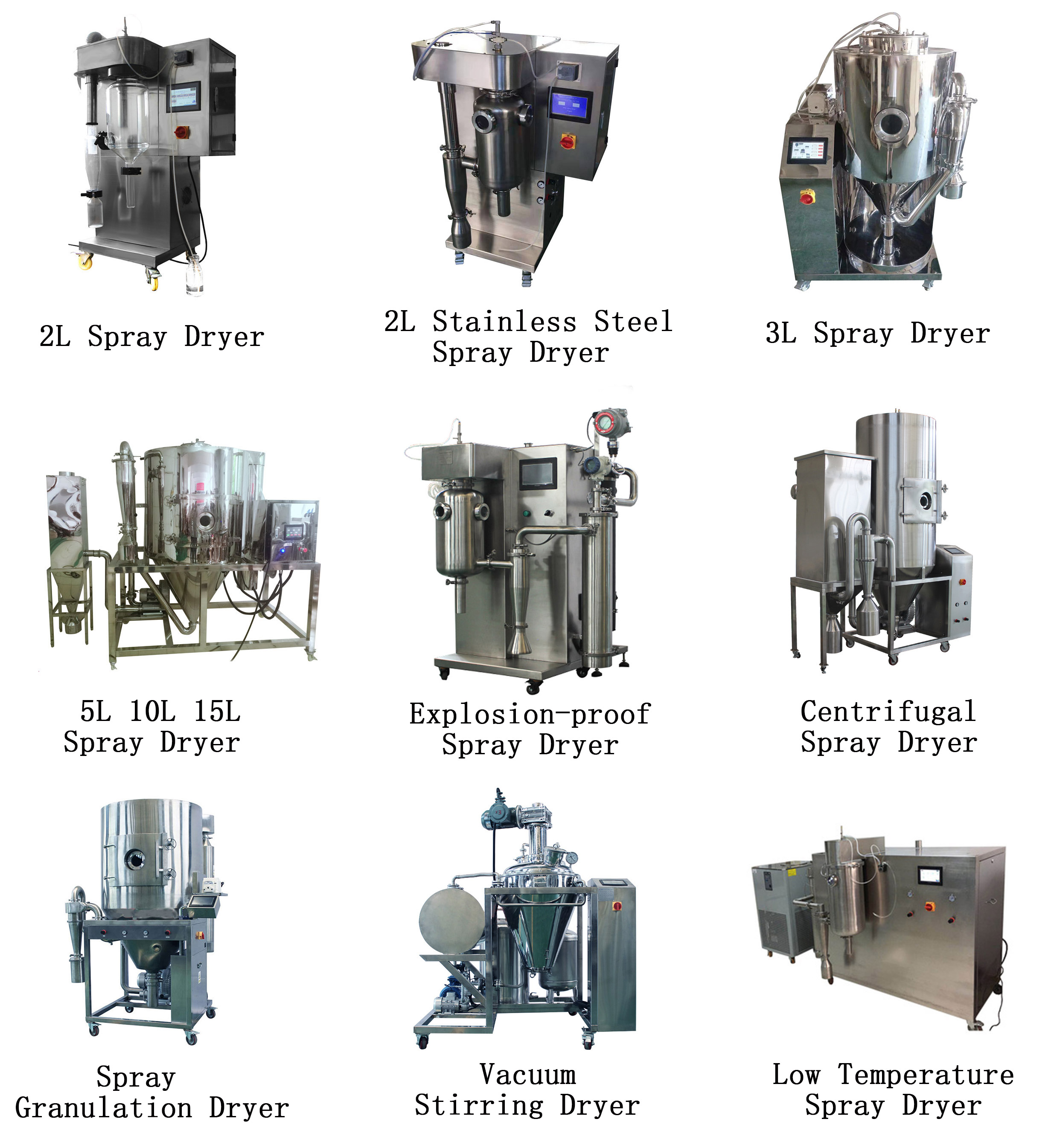

Similar Products
