Fully Automatic Plasma Laser Sword Grate Slag Slat

The automatic sword gate slag remover is a special tool for automatic cleaning of the slag on the sword gate teeth during the use of the laser plasma cutting machine.
  • Item NO.:

    ADV 901
  • Lead Time:

    7days
  • Shipping Port:

    XiaMen
  • Product Details


The automatic sword gate slag remover is a special tool for automatic cleaning of the slag on the sword gate teeth during the use of the laser plasma cutting machine. The sword gate automatic slag remover is suitable for different thickness of the sword gate rack. The slag remover can automatically follow and walk on the rack of the sword gate, which is easy to control, which greatly extends the service life of the sword gate. Therefore, the sword gate slag remover can save the cost of purchasing the product itself in a short time.


Advantages of slag remover

1.The speed is several times faster than of manual cleaning;
2.Compared with all kinds of traditional slag remover,the fully automatic slag remover really liberates both hands,and the double motor drives the machine to walk independently;
3.For laser cutting machines with different powers, we will recommend different styles to you based on our experience;
4.Plasma deslagging machine is the only product of plasma table cleaning in China at present,and it is better to clean plasma table with high efficiency;
5.The whole machine is small in size,light in weight,easy to place and carry.
Product Paramenters


Plasma laser cutting sword grid rack slag remover

Model
Standard Version
High power version
Automatic plasma
External dimension
430*300*250 mm
Weight
28kg
28kg
29kg
Rated power
2.6kw
3.0kw
3.2kw
Voltage
220v-250v
Driving mode
Dual motor drive
Revolutions
6500rpm 6 adjustable
8800rpm 6 adjustable
6500rpm 6 adjustable
Rack thickness
1.9-4.9mm
1.9-4.9mm
6-12mm
Working speed
5-8m/min
5-9m/min
speed 8m/min

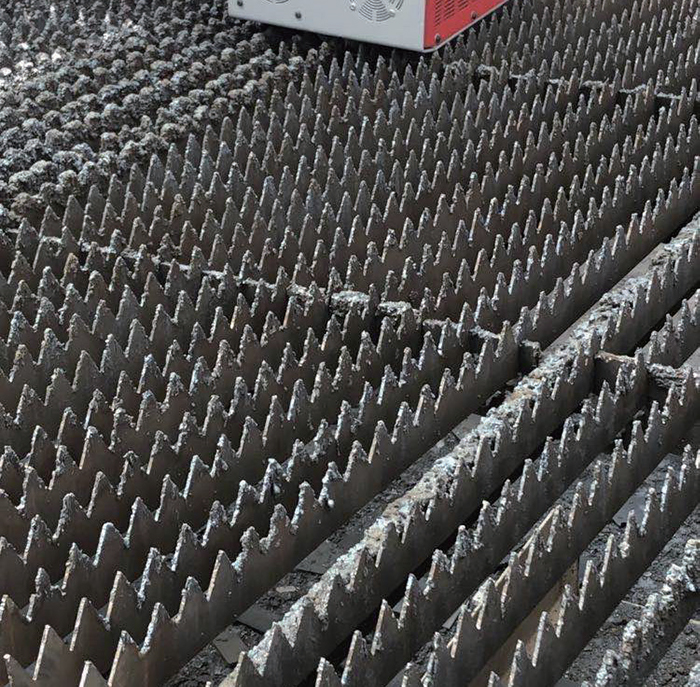

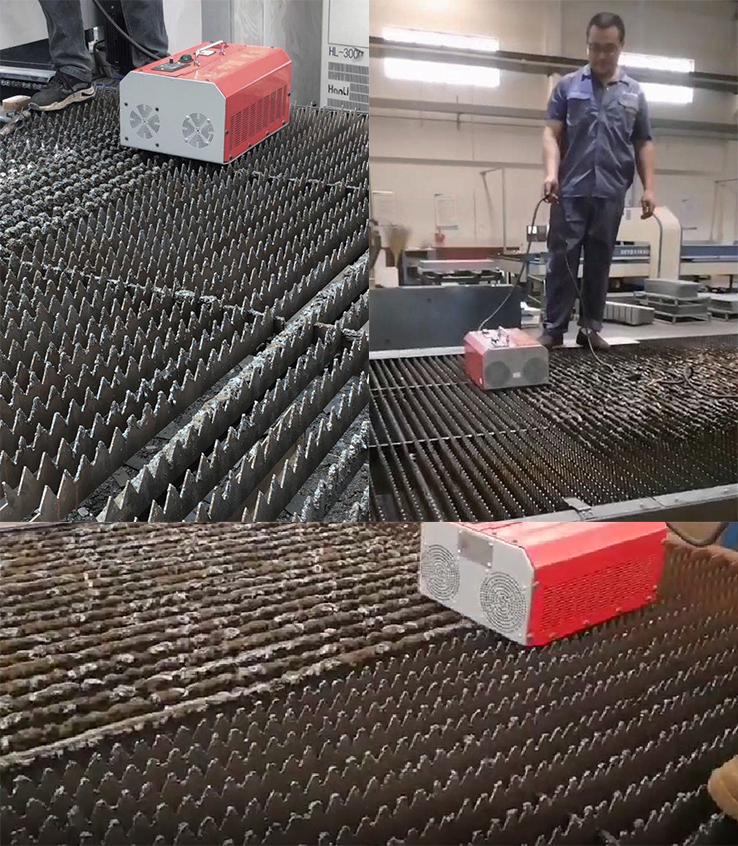

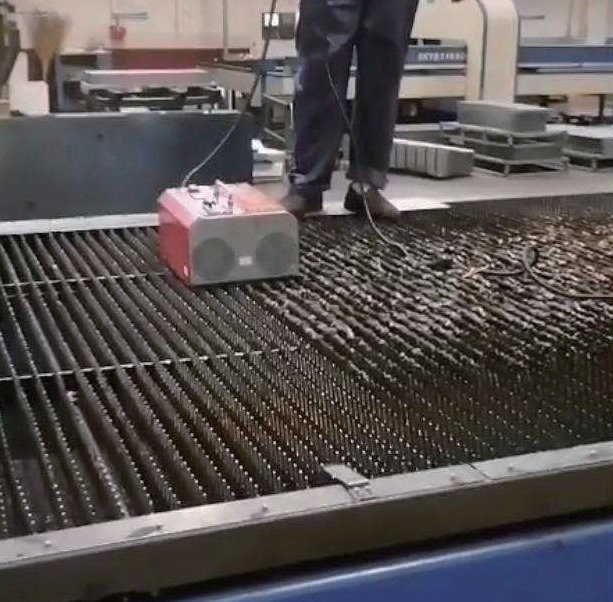

Slag cleaning site of small power slag remover:

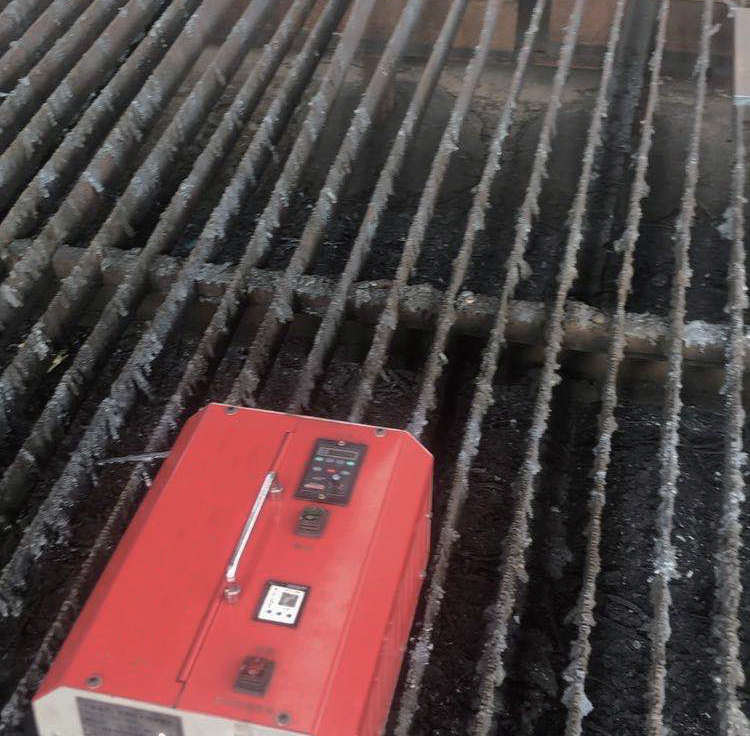

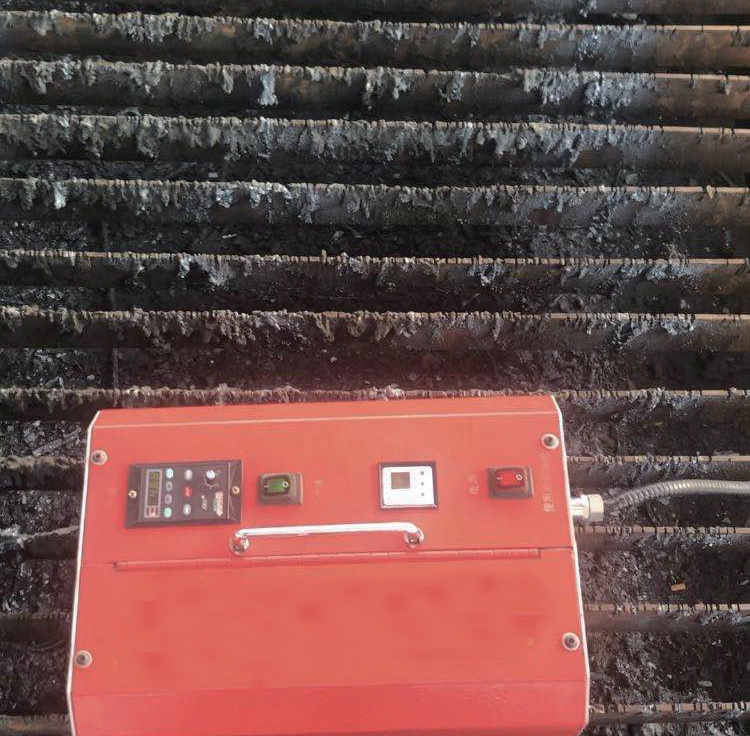

Slag cleaning site of high power slag remover:

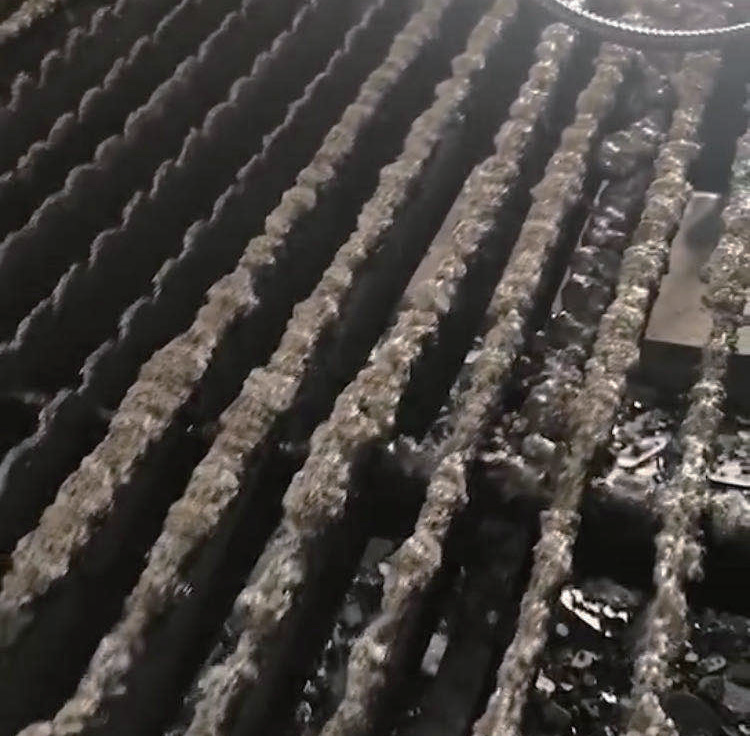

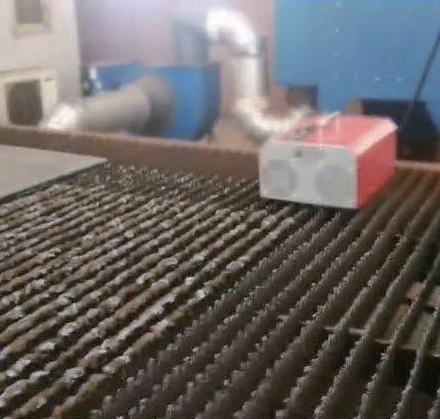

Slag cleaning site of fully automatic plasma mesa support strip slag remover:

Details Images

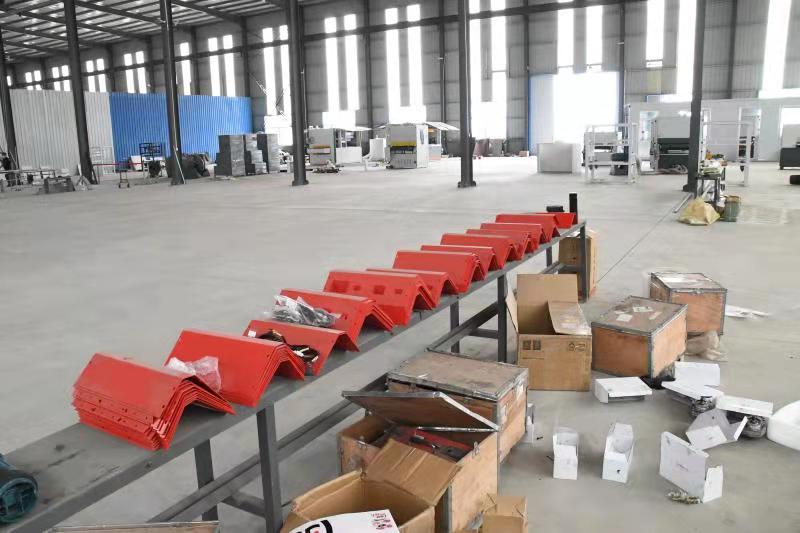

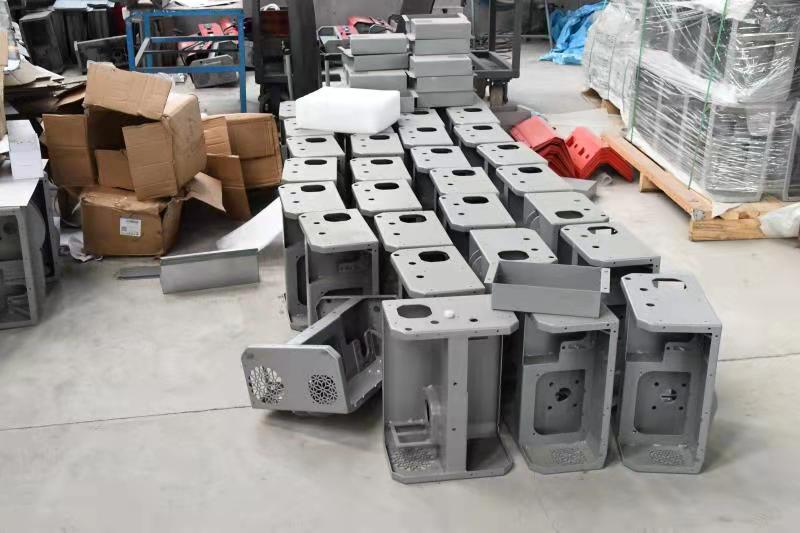

Machine shell sheet metal parts:

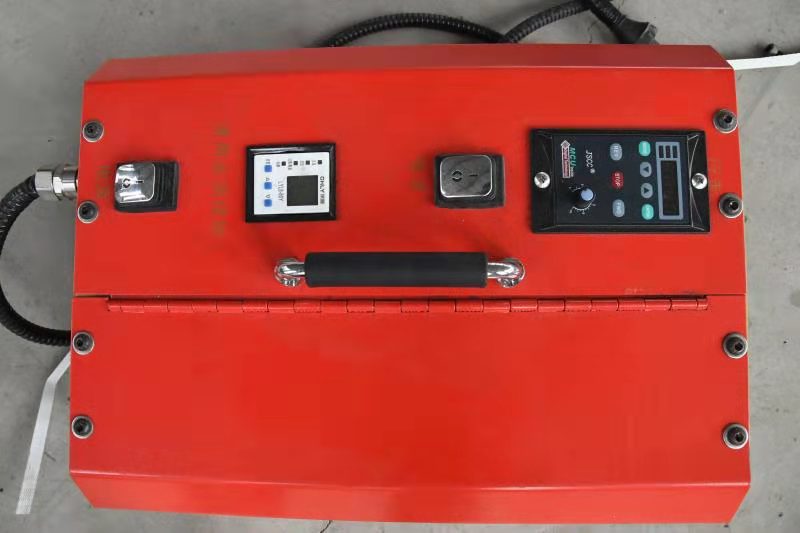

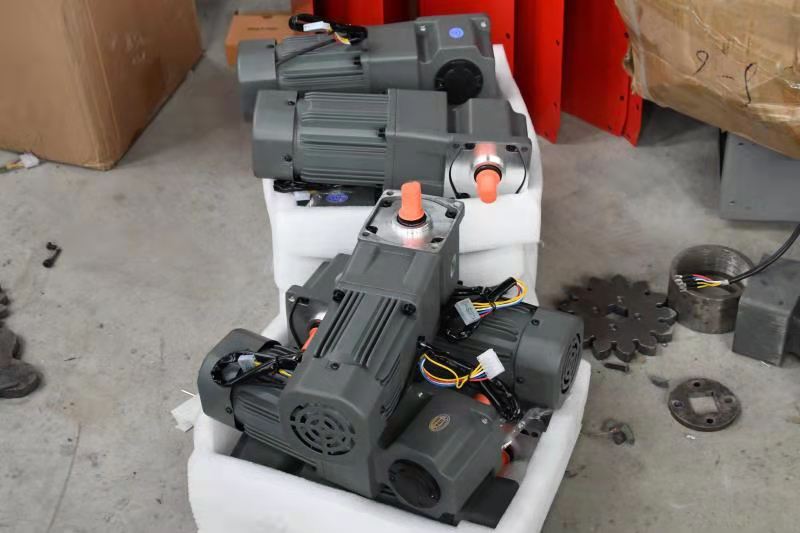

Double drive motor + inverter:

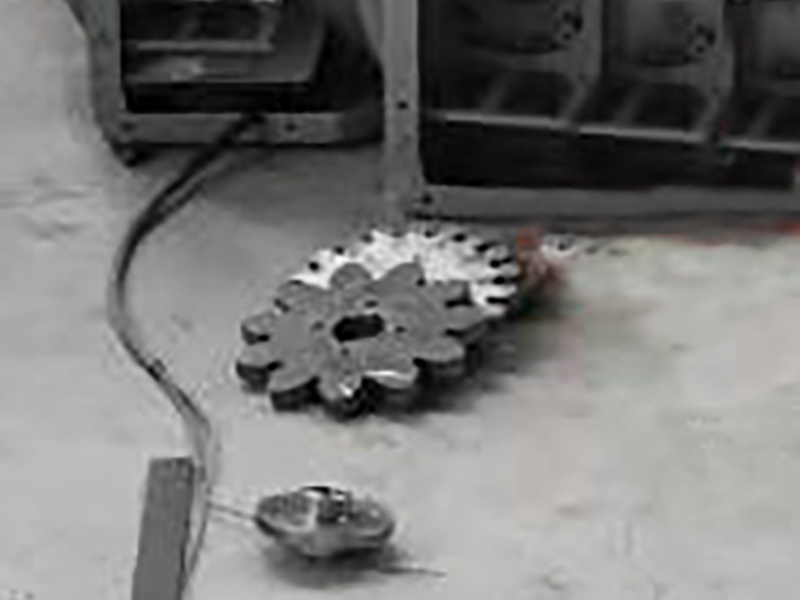

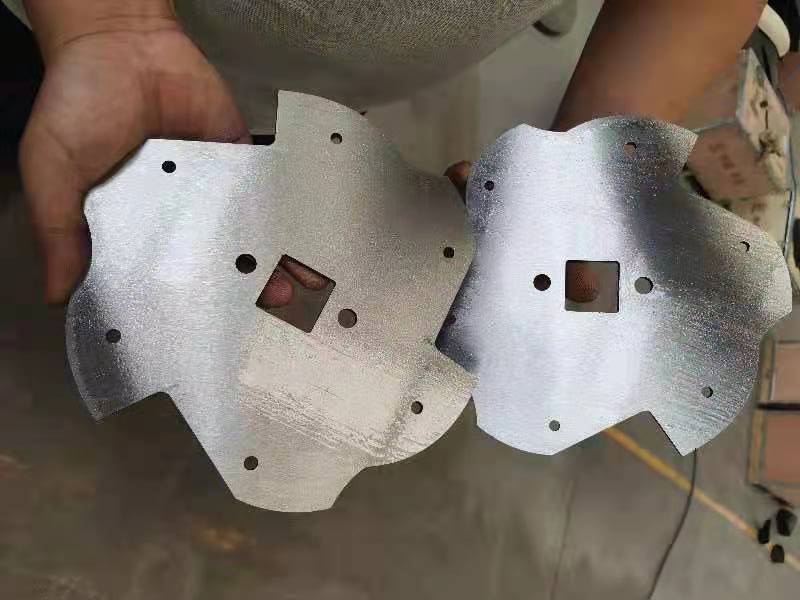

Blade + drive wheel.
