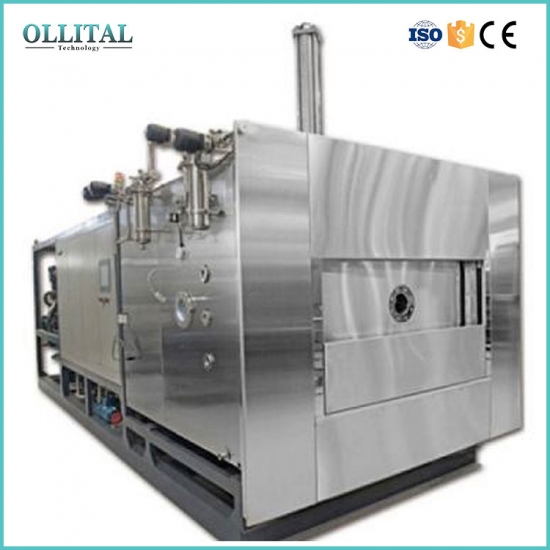

Large Scale Programmable PID Control Silicone Oil Heating In-situ Freeze Dryer

  • Model Number:

    OLT-DGJ-50F
  • Compliance:

    CE Certified
  • Minimum Order Quantity:

    1
  • Voltage:

    108V-380V 50/60HZ
  • Warranty:

    3 year
  • Packaging Details:

    Export wooden package
  • Delivery Time:

    6-8 Day
  • Product Details
OLT-DGJ-50F/100F/200F freeze dryer, in situ freeze drying. It has changed the tedious operation of the past drying process, prevented the pollution of materials, realized the automation of drying and sublimation, and was suitable for pilot production or small batch production.

The model has the function of diaphragm heating and programming. It can memorize freeze-drying curve and facilitate users to observe the freeze-drying process of materials.


Model / parameter OLT-DGJ-50F OLT-DGJ-50FT OLT-DGJ-100F OLT-DGJ-100FT OLT-DGJ-200F OLT-DGJ-200FT
Total pallet area (M2) 0.5 1 2
Water capture capacity of cold well (kg/24H) 10kg 15kg kg
Minimum cooling trap temperature (centigrade) <-75℃
Vacuum degree (Pa)) <10PA
Tray temperature (centigrade) -45℃~+70℃
Number of pallets 3+1 6+1 4+1 5+1
Tray size (mm) 500x360 500*360 500*900
Assembly logistics (L) 10L 8L 15L 15L 30L 30L
Vial bottle Ø12mm  (Reference) 3600 7920 11000
Vial bottle Ø16mm (Reference) 2000 4092 8000
Vial bottle Ø22mm (Reference) 1050 2112 4000
Capping mode Common type Automatic hydraulic cap type Common type Automatic hydraulic cap type Common type Automatic hydraulic cap type
Voltage All rolling stock required to operate on 220v
Whole machine size (mm) (l * w * h) 1100*900*1900 2100*1200*2200 3000*1200*2300
Weight (kg) 650kg 1050kg 3000kg
Total power (W) 3.5kw 7kw 10kw
Heating mode Silicone oil heating
Partition temperature difference ±1℃

1,The pre freeze drying process is carried out in situ, which reduces the tedious operation of the drying process and realizes automation.
2,The temperature error of the shelf is less than 1 degrees centigrade, and the drying effect is uniform.
3,The shelf temperature can be adjusted, controlled, fumbled, pilot and production processes.
4,Because the drying chamber and cold trap are separated structures, the water catching capacity is strong and the drying time is short.
5,Touch screen operation, PID control, display drying curve;
It can store 20 programs, each program can be set up 36 segments. The freeze dryer can modify program parameters during operation and record the final drying curve.
6,Square pallet is not easy to deform, easy to operate and easy to clean.
7,The inflatable valve can be used to dry the inert gas.
8,The drying room adopts highly transparent and colorless transparent plexiglass door, and can observe the change process of material clearly during operation.
9,Optional eutectic point testing device;
10,Equipped with manual and automatic two modes of operation, you can manually explore the freeze-drying curve of new materials.
