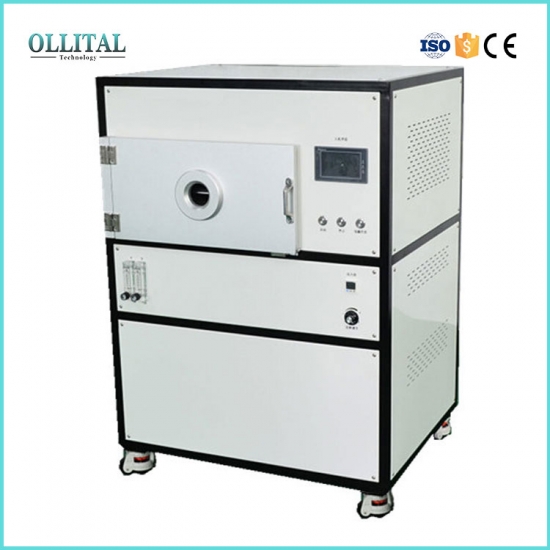

Lab Atmospheric Plasma Cleaner For Coating And Surface Treatment

  • Model Number:

    OLT-PS-5L
  • Compliance:

    CE Certified
  • Minimum Order Quantity:

    1
  • Capacity:

    5L
  • Voltage:

    108V-240V 50/60HZ
  • Power:

    ≤200W
  • Warranty:

    3 year
  • Dimension(L*W*H):

    440*450*200mm
  • Weight:

    45 kg
  • Packaging Details:

    Export wooden package
  • Delivery Time:

    8-10 day
  • Product Details

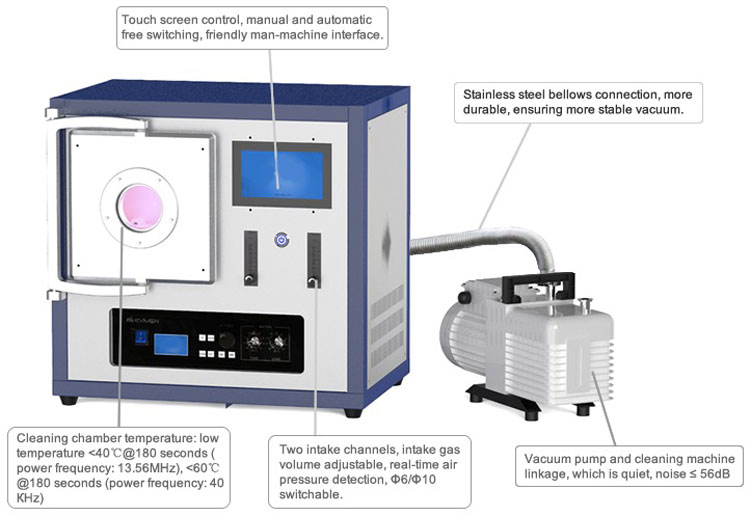

Lab Atmospheric Plasma Cleaner For Coating And Surface Treatment


Model OLT-PS-5L
Power supply AC220V
Working current Total working current not higher than1.2A (Not include the vacuum pump)
RF frequency ≤200W
RF power 40KHZ(offset less than 0.2Hz)
Frequency offset Less than 0.2KHz
Impedance matching 50 Ohm,Automatic matching
Cleaning capacity 5L
Vacuum degree 10Pa-1000Pa
Outside dimension 440*450*200mm
Gross weight 17.5Kg
Vacuum Pump

OLT-4C

Vacuum chamber temperature <65ºC
Cooling type Forced cooling
Accessories host machine 1set, vacuum pump 1set vacuum high pressure pipe 1pc,O type card 4pcs,Fuse(0.2A,1.5A) each 3pcs, manual book

1. Environmental technologies: plasma process is the role of gas - solid coherent reactor consumes no water resources, no need to add chemicals and no environmental pollution.
2. Wide adaptability: regardless of processing substrate type, such as metals, semiconductors, oxides, and most of the polymer material can be a good deal;
3. Low temperature: close to room temperature, particularly suitable polymer materials, have a longer retention time and a higher surface tension than the corona and flame method.
4. Multifunctions: it involves only a shallow surface of polymer materials (10 -1000A), while preserving the characteristics of the material itself can give it one or more  new features;
5. Low cost: the device is simple, easy operation and maintenance, continuous operation,a few bottles of gas can replace thousands of kilograms cleaning fluid
6. The whole process technology can be controlled: all the parameters can be setted by the computer and data recording
7. Treated geometry Unlimited: Big or small, simple or complex, parts or textiles can be processed.

CE Certificated Laboratoty mini Plasma Cleaner for Si, glass, metal pieces

CE Certificated Laboratoty mini Plasma Cleaner for Si, glass, metal piecesCE Certificated Laboratoty mini Plasma Cleaner for Si, glass, metal piecesCE Certificated Laboratoty mini Plasma Cleaner for Si, glass, metal pieces
